製品 | バルブ形式 | チップ材質 | 本体 | チップ |
---|---|---|---|---|
F001-Y-15-3F | NC | PCTFE | F001-Y | 15-3F |
F001-Y-15-PK | NC | PEEK | F001-Y | 15-PK |
F001-Y-15-VP | NC | Vespel(R) | F001-Y | 15-VP |
F002-Y-15-3F | NO | PCTFE | F002-Y | 15-3F |
F002-Y-15-PK | NO | PEEK | F002-Y | 15-PK |
F002-Y-15-VP | NO | Vespel(R) | F002-Y | 15-VP |
F003-Y-15-3F | NO+SW | PCTFE | F003-Y | 15-3F |
F003-Y-15-PK | NO+SW | PEEK | F003-Y | 15-PK |
F003-Y-15-VP | NO+SW | Vespel(R) | F003-Y | 15-VP |

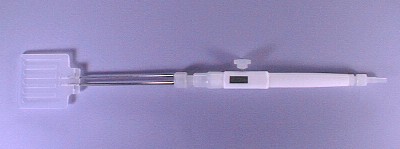

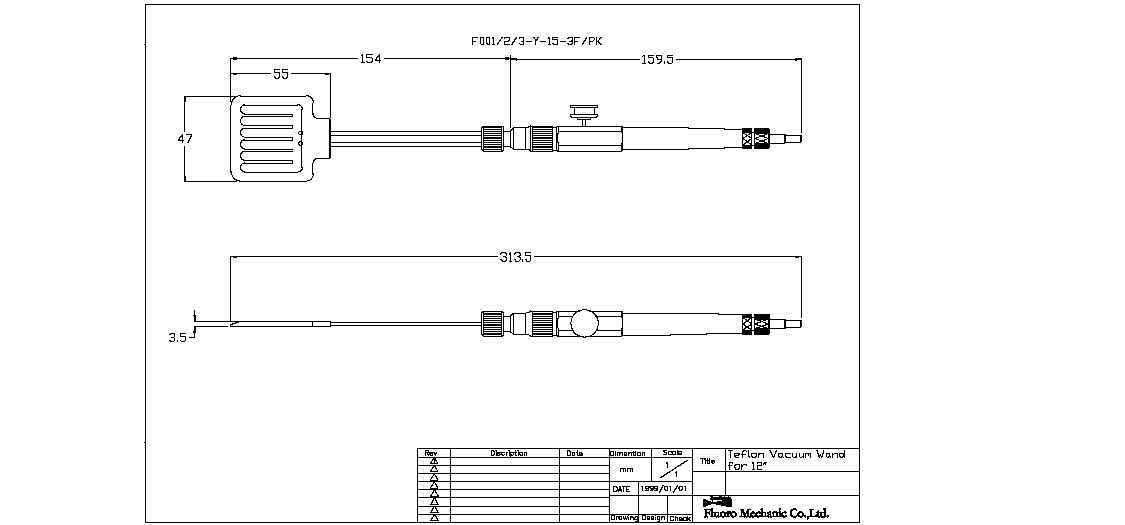

F001/2/3-Y-15-3F |
---|
全長: 313mm, 重さ: 51g |

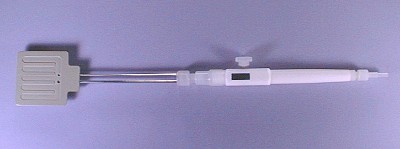

F001/2/3-Y-15-PK |
---|
全長: 313mm, 重さ: 46g |

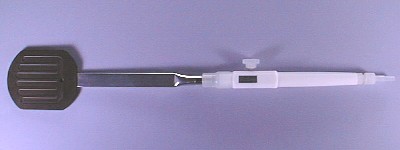

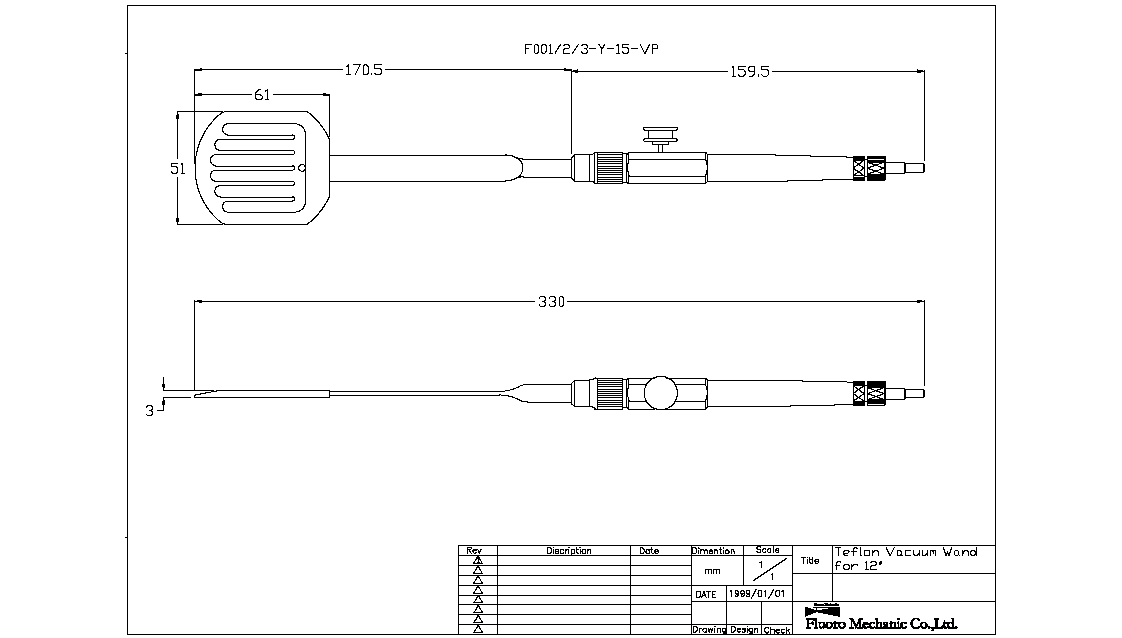

F001/2/3-Y-15-VP |
---|
全長: 330mm, 重さ: 53g |
